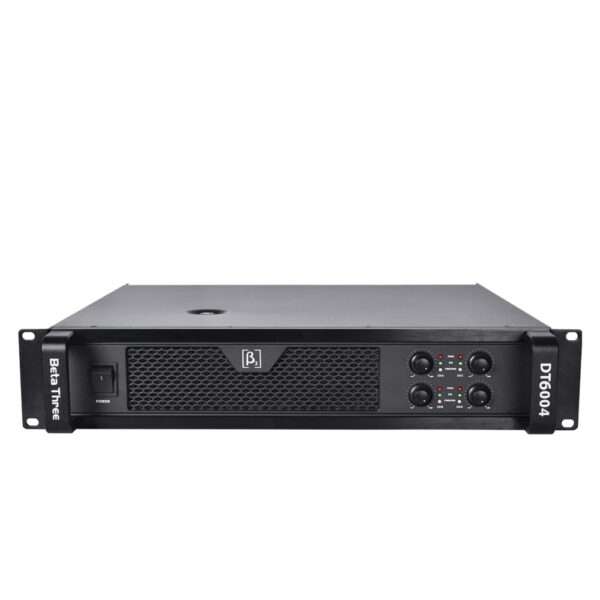

Beta3 DT8004 Professional 4-Channel Class D Amplifier

Overview: The Beta3 DT-6004 is a high-performance 4-channel Class D amplifier designed for professional sound reinforcement. Engineered for reliability and efficiency, this amplifier features an innovative thermal management system, automatic temperature control, and precise detection to ensure optimal performance in diverse audio applications. Its robust design supports a variety of power levels and includes advanced features for enhanced audio fidelity and operational flexibility.

Features:
1. High Power Output: Delivers 2000W per channel at 4 ohms and 1300W per channel at 8 ohms.
2. Flexible Sensitivity Options: Three selectable input sensitivities (0.775V, 1V, 32dB) accommodate various system requirements.
3. Input-Cascaded Switches: Simplifies wiring for large setups by linking adjacent channels.
4. Unique Limiting Function: Prevents output distortion with two limiting modes, ensuring compatibility with different speaker types.
5. Advanced Cooling System: Dual cooling fans with temperature control and integrated air ducts maintain optimal operating temperatures.
6. Intuitive Controls: Includes accurate status indicators and independent volume knobs for easy management of settings.

Specifications:
1. Power (4 ohms): 2000W per channel
2. Power (8 ohms): 1300W per channel
3. Input Sensitivity: 0.775V/1V/32dB switchable
4. S/N Ratio: >105dB
5. Frequency Response: 20Hz-20kHz ±2dB
6. THD (@1kHz): <0.1% @8Ω 7. IMD (@60Hz/7kHz 4:1): 500 @8Ω, 100Hz
9. Rated Power Supply: 220-230V ~ 50/60Hz
10. Cooling: Dual cooling fan controlled by temperature
11. Temperature Range: Working -10°C80°C
12. Input Connector: 4 x XLR
13. Output Connector (Link In): 1 x TRS
14. Output Connector (Power): 4 x NL4
15. Rated Power Consumption: 8A
16. Dimensions (W x D x H): 89 x 482 x 380mm / 3.5 x 19 x 15in
17. Package Dimensions (W x D x H): 590 x 550 x 164mm / 23.2 x 21.7 x 6.5in
18. Net Weight: 22 kg / 48.5 lb

Application & Use: The Beta3 DT-6004 is ideal for professional audio setups in live sound reinforcement, recording studios, and large events. Its powerful output and versatile features make it suitable for demanding audio environments where high fidelity and reliability are crucial.
